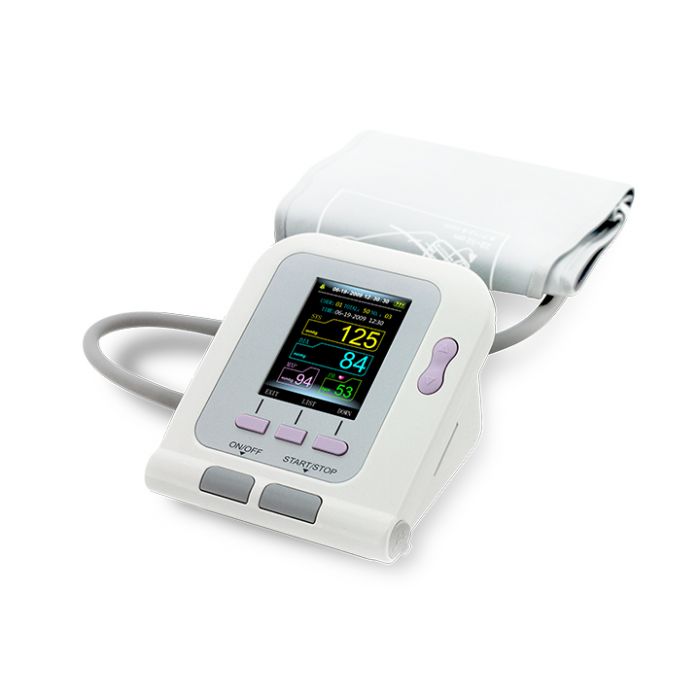

Contec Digital BP Monitor 08A

CONTEC08A-BT is a device measured human body BP(blood pressure) parameters, which features in user-friendly interface, high-resolution color LCD, strong in visuality, easy to operate, Bluetooth transmission, diagnosing by remote experts, SpO2 measurement function(SpO2 is necessary). It can be applied to family, clinic and physical center for routine measurement.

      Product Specifications

• High-resolution color LCD. Optional interface languages: Chinese and English, strong in visuality.
• Optional measurement mode: adult, neonatal and pediatric.
• Full-automatic NIBP measurement. Oscillometry measurement principle, multistep deflation measurement, high in measurement repeatability. And the device will display corresponding error information when measurement error appears.
• Prompt for over-limit of physiological parameters, and the upper and lower limit can be set.
• Wireless transmission function. NIBP data saved in the device can be transmitted to Clients mobile by Bluetooth.
• Optional measurement units: mmHg and kPa, which can be switched according to requirements. Visual and audible prompt when low-battery appears.
• Timing shutdown function, and with short-time power storage function, when replacing the battery, the clock time will not be influenced.
• Large-capacity storage. NIBP data can be checked by the data review interface, such as "data list", "trend graph", "big font" interface, etc.
• With SpO2 measurement function(SpO2 probe is necessary).

• Features

  1. Fully automatic blood pressure measure　　
  2. The Electronic Sphygmomanometer stores the measure results of three users automatically, and up to 100 items for every user.It can satisfy blood pressure measure requirement of all your family.　　
  3. Three kinds of measure modes : adult, pediatric and neonatal.　　
  4. By data review interface such as "data list","trend graph","big font", NIBP data is clear at a glance.　
  5. With SpO₂ measure function(with optional SpO₂ probe).　　
  6. Has the function of physiological alarm.It can be set the alarm limits,when blood pressure is higher than the high limit or lower than the low limit, the physiological alarm will occur.Alarm switch can be set.　　
  7. Screen displays prompt message when the power is low，and the device gives low power prompt sound.The prompt sound switch can be set.　
  8. When there are factors which affect the measure in the process of measure and the device can't get the measure result,the device can display the corresponding error message.　　
  9. With short-time power storage function, when replacing the battery, the clock time function can't be affected.　　
  10. Supply two kinds of NIBP measure unit: mmHg / kPa　　
  11. Store measure results with date and time.　　
  12. High-definition color LCD display,supply English/Chinese interface, strong visibility.　
  13. Communicate with PC,PC software can achieve data review, analysis measure results, seeing trend, printing reports and other functions.
  14. Function of automatic power-off.

  Performance

  • NIBP
    Measure Method: Oscillometry
    Measure Mode: The upper arm measure
    Measure range: 0kPa（0mmHg）~ 38.67kPa（290mmHg）
    Resolution: 0.133kPa（1mmHg）
    Accuracy: ±0.4kPa（±3mmHg）
    NIBP pulse rate measure range: 40～240bpm
    Increasing pressure mode: force pump increases pressure automatically
    Reducing pressure mode: self-motion ladder reducing pressure mode
  • SpO₂
    Measure range: 35%～100%
    Accuracy: ±2%, 70%～100%
    SpO₂ Probe Pulse Rate:
    Measuring range:30bpm～250bpm
    Resolution:1bpm
    Display: 2.8" High-definition color LCD
    Power: Four "AA" Batteries/5V or 6V Power adapter
    Safety character:ClassⅡ Type BF

  Physics speciality

• Dimension: 130mm*110mm*80 mm
  Weight: 300g (No Batteries)

  Accessories

  • Cuff for adult
  • Cuff for Child
  • Cuff for infant
  • Cuff for Neonate
  • Digital Integrative SpO2 Probe
  • User manual（GB only）on request for other Language
  • USB data line
  • Power adapter(optional)

  Software function

  1. PC software is connect to the device by USB interface
  2. Can download NIBP measure result of the terminal device
  3. Can display trend graph,histogram, pie chart,etc.
  4. Can edit every piece of NIBP data, and add annotation to it.
  5. Can edit basic information,doctor's advice information, NIBP status instruction, current medicine-taken information, etc.
  6. Support print preview,print the report.
